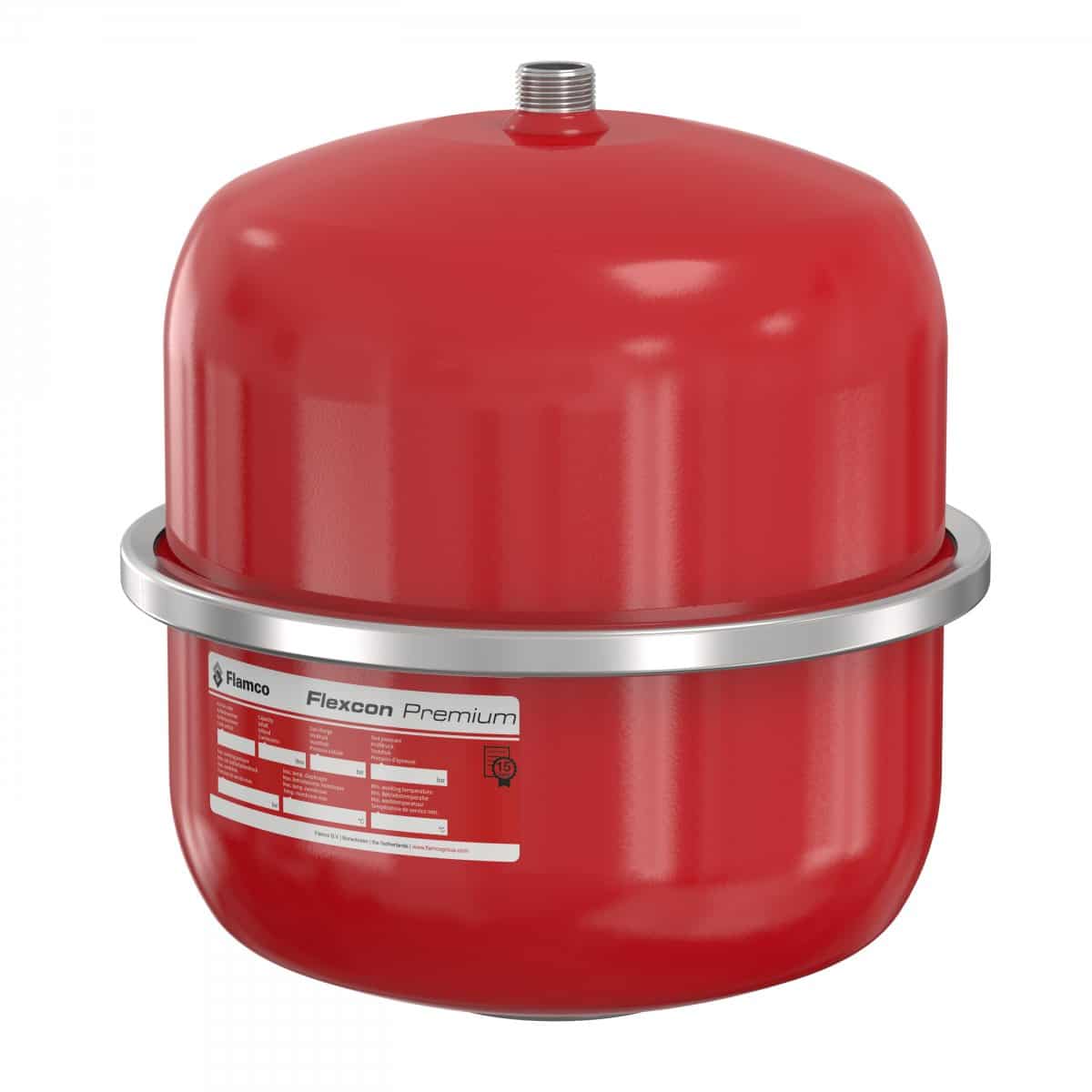

Expansion tank Flexcon Premium 25L
Regular price
$657.00
Tax included.
Expansion vessel Flexcon Premium 25 l Flexcon Premium 25 l helps maintain the correct pressure in your heating or cooling system and compensates for volume...
This product is only available to customers in the Stockholm area .
-
Technical data Value
-
Volume/Contents 25 L
-
Prepressure 0.5 bar
-
Expansion connection dimension Port 20 (3/4")
-
External pipe diameter expansion connection 26.5 mm
-
Height 421 mm
-
Diameter 297 mm
-
Connection External thread R conical ISO 7-1 / EN 10226-1
-
With fixed wall mount No
-
With replaceable membrane No
-
Color Red
-
Suitable for central heating Yes
-
Suitable for cooling Yes
-
Suitable for tap water No
-
Material membrane/bladder TPO
-
Max working pressure 6 bar
-
Max ethanol blend 50%
-
Max glycol mixture 50%
-
With drain No
-
With legs/feet No
-
With pressure gauge No
-
With mounting parts Yes
-
With safety valve No
-
With valve tube No
-
Media temperature continuous
-
Standing No
-
Vertical placement Yes
-
Opening pressure safety valve 0.5 bar
-
Suitable for solar collector circuit No
-
Tilt Rise height 515.218400292536 mm
